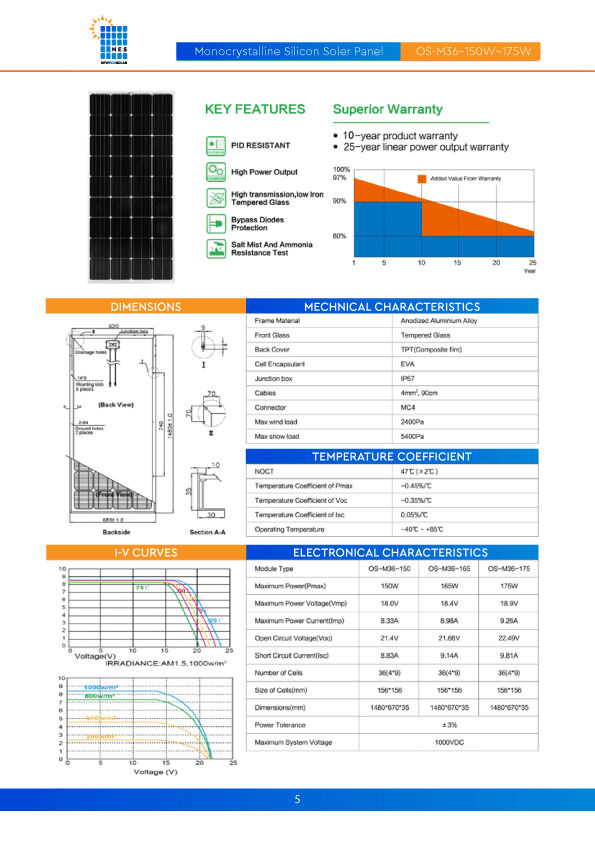

Monocrystalline Silicon Soler Panel-OS-M36-150-175W
Monocrystalline Silicon Solar Panel-OS-M36-150-175W
Key Features
PID Resistant
High Power Output
High Transmission, Low Iron Tempered Glass
Bypass Diodes Protection
Salt Mist and Ammonia Resistance Test.
Superior Warranty
10-Year Product Warranty
25-Year Linear Power Warranty
|
Mechanical |
Characteristics |
|
Frame Material |
Anodized Aluminum Alloy |
|
Front Glass |
Tempered Glass |
|
Back Cover |
TPT (Composite Film) |
|
Cell Encapsulate |
EVA |
|
Junction Box |
IP67 |
|
Cables |
4mm2, 1000cm |
|
Connector |
MC4 |
|
Max Wind Load |
2400Pa |
|
Max Snow Load |
5400Pa |
|
Temperature |
Coefficient |
|
NOCT |
47°C(±2°C) |
|
Temperature Coefficient of Pmax |
-0.45%/°C |
|
Temperature Coefficient of VOC |
-0.35%/ °C |
|
Temperature Coefficient of ISC |
0.05%/ °C |
|
Operating Temperature |
-40°C -+ 85°C |
Monocrystalline Silicon Soler Panel-OS-M36-150-175W
€ 0
This product has no variations.
Request a quotation
