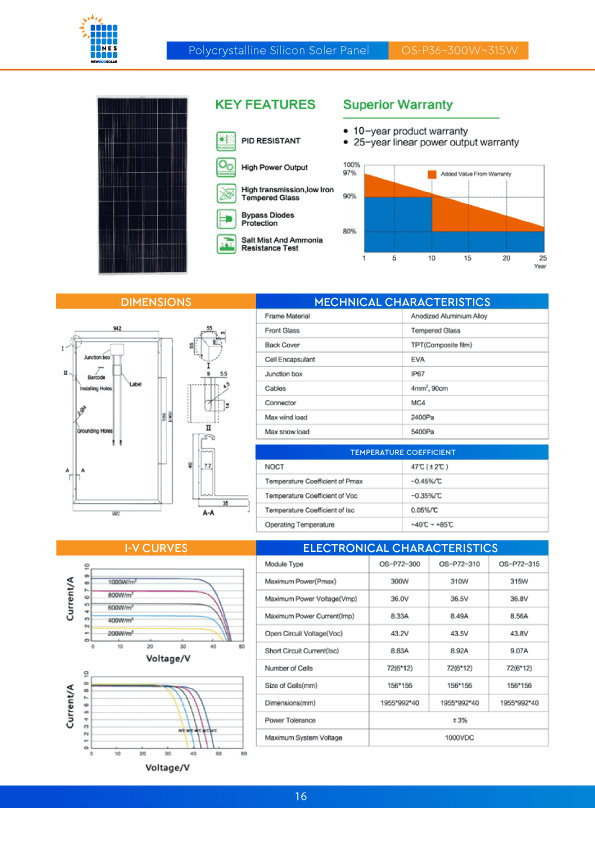

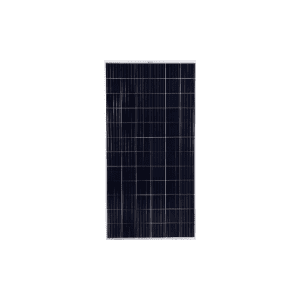

Polycrystalline Silicon Soler Panel-OS-P36-300W-315W
Polycrystalline Silicon Solar Panel-OS-P36-300W-315W
Key Features
PID Resistant
High Power Output
High Transmission, Low Iron Tempered Glass
Bypass Diodes Protection
Salt Mist and Ammonia Resistance Test.
Superior Warranty
10-Year Product Warranty
25-Year Linear Power Warranty
|
Mechanical |
Characteristics |
|
Frame Material |
Anodized Aluminum Alloy |
|
Front Glass |
Tempered Glass |
|
Back Cover |
TPT (Composite Film) |
|
Cell Encapsulate |
EVA |
|
Junction Box |
IP67 |
|
Cables |
4mm2, 1000cm |
|
Connector |
MC4 |
|
Max Wind Load |
2400Pa |
|
Max Snow Load |
5400Pa |
|
Temperature |
Coefficient |
|
NOCT |
47°C(±2°C) |
|
Temperature Coefficient of Pmax |
-0.45%/°C |
|
Temperature Coefficient of VOC |
-0.35%/ °C |
|
Temperature Coefficient of ISC |
0.05%/ °C |
|
Operating Temperature |
-40°C -+ 85°C |
|
|
Electronical |
Characteristics |
|
|
Module Type |
OS-P72-300 |
OS-P72-310 |
OS-P72-315 |
|
Maximum Power (Pmax) |
300W |
310W |
315W |
|
Maximum Power Voltage(Vmp) |
36.0V |
36.5V |
36.8V |
|
Maximum Power Current (Imp) |
8.33A |
8.49A |
8.56A |
|
Open Circuit Voltage (Voc) |
43.2V |
43.5V |
43.8V |
|
Short Circuit Current (ISC) |
8.83A |
8.92A |
9.07A |
|
Number Of Cells |
72(6*12) |
72(6*12) |
72(6*12) |
|
Size Of Cells (mm) |
156*156 |
156*156 |
156*156 |
|
Dimensions (mm) |
1955*992*40 |
1955*992*40 |
1955*992*40 |
|
Power Tolerance |
±3% |
±3% |
±3% |
|
Maximum System Voltage |
1000VDC |
1000VDC |
1000VDC |
Polycrystalline Silicon Soler Panel-OS-P36-300W-315W
€ 0
This product has no variations.
Request a quotation
