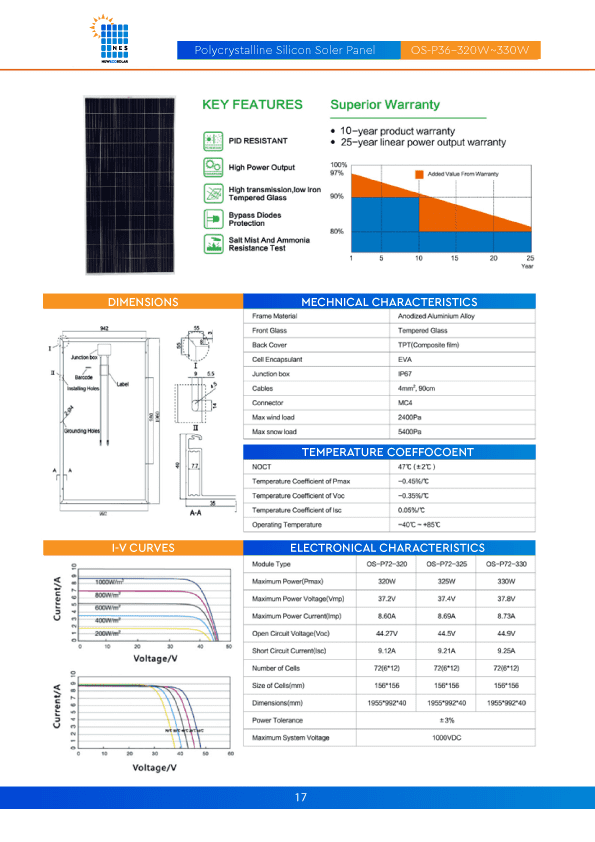

Mechanical

 Characteristics

Frame Material

Anodized Aluminum Alloy

Front Glass

Tempered Glass

Back Cover

TPT (Composite Film)

Cell Encapsulate

EVA

Junction Box

IP67

Cables

4mm², 1000cm

Connector

MC4

Max Wind Load

2400Pa

Max Snow Load

5400Pa

Temperature

Coefficient

NOCT

47°C(±2°C)

Temperature Coefficient of Pmax

-0.45%/°C

Temperature Coefficient of VOC

-0.35%/ °C

Temperature Coefficient of ISC

0.05%/ °C

Operating Temperature

-40°C -+ 85°C

C

Electronical

Characteristics

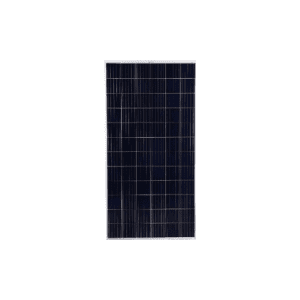

Module Type

OS-P72-320

OS-P60-325

OS-P60-330

Maximum Power (Pmax)

320W

325W

330W

Maximum Power Voltage(Vmp)

37.2V

37.4V

37.8V

Maximum Power Current (Imp)

8.60A

8.69A

8.73A

Open Circuit Voltage (Voc)

44.27V

44.5V

44.9V

Short Circuit Current (ISC)

9.12A

9.21A

9.25A

Number Of Cells

72(6*12)

72(6*12)

72(6*12)

Size Of Cells (mm)

156*156

156*156

156*156

Dimensions (mm)

1955*992*40

1955*992*40

1955*992*40

Power Tolerance

±3%

±3%

±3%

Maximum System Voltage

1000VDC

1000VDC

1000VDC
