Mechanical

 Characteristics

Frame Material

Anodized Aluminum Alloy

Front Glass

Tempered Glass

Back Cover

TPT (Composite Film)

Cell Encapsulate

EVA

Junction Box

IP67

Cables

4mm², 1000cm

Connector

MC4

Max Wind Load

2400Pa

Max Snow Load

5400Pa

Temperature

Coefficient

NOCT

47°C(±2°C)

Temperature Coefficient of Pmax

-0.45%/°C

Temperature Coefficient of VOC

-0.35%/ °C

Temperature Coefficient of ISC

0.05%/ °C

Operating Temperature

-40°C -+ 85°C

Electronical

Characteristics

Module Type

OS-P60-250

OS-P60-260

OS-P60-270

Maximum Power (Pmax)

300W

310W

315W

Maximum Power Voltage(Vmp)

30.4V

31.02V

31.66V

Maximum Power Current (Imp)

8.22A

8.38A

8.69A

Open Circuit Voltage (Voc)

36.5V

38.05V

38.86V

Short Circuit Current (ISC)

9.21A

9.08A

9.22A

Number Of Cells

60(6*10)

60(6*10)

60(6*10)

Size Of Cells (mm)

156*156

156*156

156*156

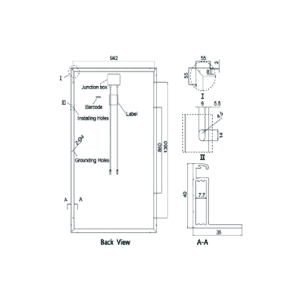

Dimensions (mm)

1640*992*40

1640*992*40

1955*992*40

Power Tolerance

±3%

±3%

±3%

Maximum System Voltage

1000VDC

1000VDC

1000VDC
